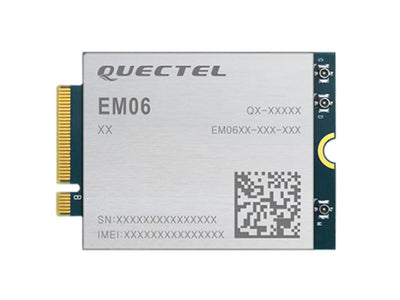

Quectel EM06-A CAT6 M.2 Modem

M.2 Modem with 2 x Carrier Aggregation

Quectel EM06 is a series of LTE Advanced category 6 module optimized specially for M2M and IoT applications. Adopting the 3GPP Rel. 11 LTE technology, it delivers M2M-optimized speeds of 300Mbps downlink and 50Mbps uplink peak data rates.

Designed in the M.2 form factor, EM06 contains 3 variants (EM06-E, EM06-J, EM06-A) for different target regions and these variants nearly cover all the main stream carriers worldwide.  The EM06-A is the variant for North America.

EM06 supports Qualcomm® IZat™ location technology Gen8C Lite (GPS, GLONASS, BeiDou, Galileo and QZSS). The integrated GNSS greatly simplifies product design, and provides quicker, more accurate and more dependable positioning capability.

A rich set of Internet protocols, industry-standard interfaces and abundant functionalities (USB drivers for Windows 7/8/8.1/10, Linux, Android) extend the applicability of the module to a wide range of M2M and IoT applications such as industrial router, home gateway, set top box, industrial laptop, consumer laptop, industrial PDA, rugged tablet PC, video surveillance and digital signage, etc.

NOTE:  It is strongly recommended to invest in a quality power strip surge protector (i.e., APC, Belkin,…) to use behind a router and/or electronic equipment.  This will help protect against Transients (momentary spikes/surges in voltage or current) that can be detrimental to expensive equipment.  Transient damage to modems are not covered under warranty.  Protect your equipment.

IMPORTANT:  Exercise extreme caution while installing MHF4 connectors to the modem antenna ports.  The ports are delicate and easily damaged.  Assure that the MHF4 connector is perfectly centered, level and aligned with the modem port.  The MFH4 connector will then snap into place using minimum pressure.  Do not apply excessive force.  A damaged modem connector port is not covered under warranty.

Key Benefits

LTE-A Cat 6 module with M.2 form factor, optimized for M2M and IoT applications

Support LTE-A carrier aggregation

Worldwide LTE-A and UMTS/HSPA+ coverage

Multi-constellation GNSS receiver available for applications requiring fast and accurate fixes in any environment

Feature refinements: supports DFOTA* and DTMF

MIMO technology meets demands for data rate and link reliability in modem wireless communication systems

Enhanced Features

MIMO: 2 × 2, 4 × 2, DL

Digital Audio and VoLTE (Voice over LTE)

(Optional)

(U)SIM Card Detection

DTMF: Dual-tone Multi-frequency

Support Dual SIM Single Standby*

DFOTA: Delta Firmware over the Air

GNSS: GPS/GLONASS/BeiDou/Galileo/QZSS

Electrical Characteristics

Output Power:

Class 3 (23dBm±2dB) for LTE-FDD

Class 3 (23dBm±2dB) for LTE-TDD

Class 3 (24dBm+1/-3dB) for WCDMA

Consumption

50uA @Power off

4.36mA @Sleep, Typ.

22.3mA @Idle

Software Features

Support eSIM

MBIM Driver:

Windows 10

USB Serial Driver:

Windows 7/8/8.1/10,

Linux 2.6/3.x/4.1~4.15,

Android 4.x/5.x/6.x/7.x/8.x/9.x

RIL Driver:

Android 4.x/5.x/6.x/7.x/8.x/9.x

NDIS Driver

Windows 7/8/8.1/10
